Contractors inadvertently drilled through a pressurised 450mm steel contaminated water pipe at a wastewater treatment works in the UK, requiring a rapid emergency live leak repair to prevent a damaging environmental incident from occurring.

Case Study Overview

Site Wastewater Treatment Works
Location Sussex, UK
Pipe Type 450mm steel
Repair Type Live leak repair
Products Wrap & Seal Pipe Burst Tape, SylWrap HD Pipe Repair Bandage

Pipe Defect

Contractors carrying out major infrastructure improvements at the wastewater treatment works believed a steel contaminated water pipe in was decommissioned and due for removal.

In fact, it was one of the most important pipes on site – still highly pressurised and connected to all the waste treatment ponds. As soon as it was cut it, a powerful jet of contaminated wastewater began spraying out.

After the pipe was mistakenly breached, there was no feasible way to stop the leak other than isolating the pipe and replacing it. This would have involved shutting down the site for a prolonged period.

The leak had potentially costly and embarrassing consequences, unless it could be sealed quickly. As a result, a rapid emergency wastewater pipe repair method was required.

SylWrap Solution

The wastewater treatment plant was located less than one hour from Sylmasta HQ. The contractor contacted Sylmasta and we were able to rush products to the site and provided technical assistance during the repair.

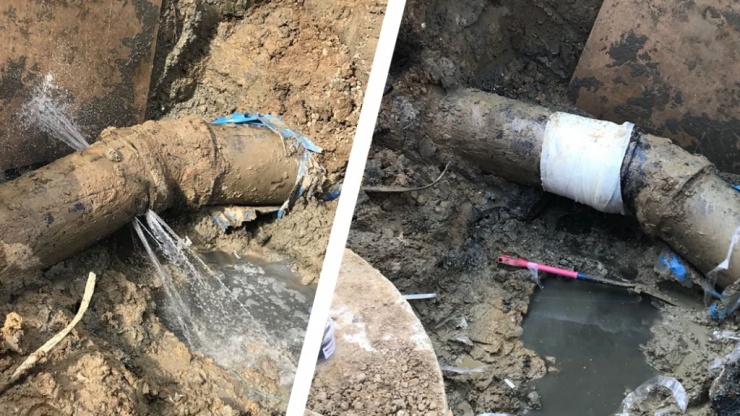

Wrap & Seal Pipe Burst Tape was used to repair the breach in the wastewater pipe. Wrap & Seal is a self-fusing waterproof repair tape which stretches by 300 percent, forming a solid rubber band to seal live leaks.

Several Wrap & Seal tapes were required because of the pressure of the wastewater pipe. Using multiple tapes can create a repair resistant up to 30 bar, with the tapes bonding to each other in the same manner as a single tape fusing.

Once the leak had been sealed, the initial repair was overwrapped with SylWrap HD Pipe Repair Bandage. SylWrap HD is a composite wrap with a water-activated resin which sets rock hard in minutes.

SylWrap HD reinforced the repair made using Wrap & Seal by providing an impact resistant layer over the pipe, creating a permanent solution.

Outcome

Within an hour of Sylmasta being on-site, the breached contaminated water pipe had undergone a permanent repair at a cost to the contractor of less than £300, including additional SylWrap HD to protect other pipes during the improvement works.

This was a drop in the ocean compared to how much a solution would have cost without SylWrap. The site may have been forced into a shutdown to isolate the pipe and drain the connected treatment ponds so that replacement pipework could be installed.

A combination of a new pipe, the labour costs of installing it and the associated loss of earnings during the shutdown could have turned the whole process into an expensive affair running into tens of thousands of pounds.

The speed of a SylWrap repair also prevented a serious environmental incident developing. This could have been damaging in monetary terms through the clean up operation and possible fines, and for the reputations of both the treatment works and the contractor involved.

A day after the repair had been completed, the wastewater treatment plant manager emailed Sylmasta to say: “Thank you so much, the pipe repair worked a treat.”

Follow Up

Being able to react quickly to unexpected leaks and bursts in wastewater treatment plants minimises the impact that such incidents can have in environments where contaminated water is prevelant.

Sylmasta supply SylWrap Pipe Repair Contractor Cases to the wastewater industry to enable rapid live leak repairs to be made as soon as problems develop.

The Case contains enough products to make up to six live leak repairs without the need for any formal training. It is easy-to-store on site, meaning that wastewater treatment works simply reach for their Case, where they have everything they need to make fast repairs.

Products Used

Wrap & Seal Pipe Burst Tape
Self-amalgamating tape forms a solid rubber band to contain high pressure live leaks

SylWrap HD Bandage
Composite wrap sets rock hard to reinforce and protect pipe repairs

Universal Pipe Repair Kit
Wrap & Seal and SylWrap HD Bandage are supplied in a Universal Pipe Repair Kit

Pipe Repair Contractor Case
Easy-to-store Case containing enough products for up to six live leak repairs

Related Case Studies

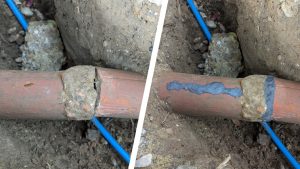

Underground 100mm Clay Drainage Pipe Repair After Building Work Caused Cracks

An underground 100mm clay drainage pipe is repaired by a homeowner after being left with multiple cracks during building work, one of which almost split the pipe in two

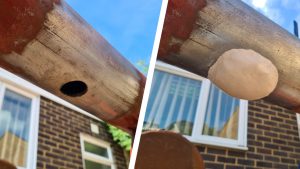

Superfast Aqua PW & SylWrap Leak Repair Passes ASME PCC-2 402-III Qualification Testing

Superfast Aqua PW Epoxy Putty and SylWrap HD make a leak repair qualified to ASME PCC-2 402-III by withstanding pressure increases to 30 bar in multiple tests after sealing a 25mm hole

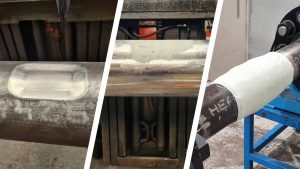

Industrial Metal & SylWrap Pipe Repair Passes ASME PCC-2 401-III Qualification Testing

Industrial Metal and SylWrap HD are independently tested to pass ASME PCC-2 401-III qualification by rebuilding a pipe weakened by 86% to withstand over 309.6 bar pressure

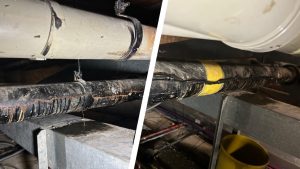

Cast Iron Soil Pipe Leaking Wastewater in Roof Space Above Hospital Ward Repair
