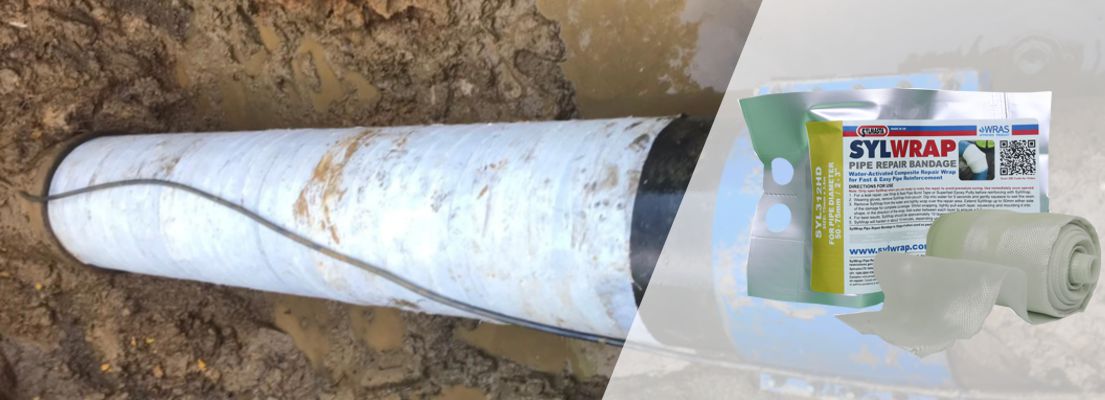

SylWrap Pipe Repair Bandages are water-activated and set rock hard in minutes, helping to strengthen and repair damaged and leaking pipework

SylWrap HD Pipe Repair Bandage

SylWrap HD Pipe Repair Bandage is a water-activated composite wrap made with high density fibres which strengthens and protects pipework, extending the lifespan of systems.

Applying SylWrap HD increases pipe pressure resistance, chemical resistance and hoop strength by creating a thick, rock-hard outer shell around pipework.

In successful qualification testing to pass ASME PCC-2 Appendix 401-III – Short Term Spool Survival, a pipe weakened by 86 percent from its original specification was strengthened by SylWrap HD and Industrial Metal Epoxy Paste to withstand over 309.6 bar pressure.

This SylWrap shell also reinforces leak and damage repairs made using epoxy putties, pastes, coatings or tapes by forming an impact resistant layer over the initial sealant.

The fast working resin in SylWrap HD sets within minutes. As a result, it can quickly reinforce large surface areas of degraded pipes from the outside without needing tools or systems shutting down. It can also be directly wrapped underwater.

SylWrap HD is temperature resistant to 250°C. It reinforces pipework made of steel, stainless steel, copper, malleable iron, GRP, ceramic, most plastics, clay, concrete, rubber and lead.

Water utilities companies in the United Kingdom, Malaysia, Mexico and Canada use SylWrap HD to reinforce leak repairs made on the public supply network. It has WRAS Approval, meaning it is certified to British standards as safe to use on pipes carrying drinking water.

SylWrap HD has also strengthened pipelines at desalination plants, wastewater treatment works, nuclear power plants and oil refineries. The high chemical resistance of SylWrap HD makes it suitable for use on hydrogen lines and sulphuric acid lines.

About

Case Studies

Repair Calculator

Videos

Size Guide

About

How to strengthen and protect pipework with SylWrap HD Pipe Repair Bandage

SylWrap HD is easy to use. Dipping the bandage into water activates the resin. The user then wraps it tightly around the pipework which requires strengthening or protection.

Further water smooths SylWrap HD down as the application continues, ensuring the bandage conforms tightly to the pipe.

SylWrap HD has a work time of 2-5 minutes. It achieves a functional cure in 30-45 minutes and a full cure with maximum properties in 24 hours.

To determine the quantity of SylWrap HD and the bandage sizes for a specific reinforcement or strengthening application, please go to the Repair Calculator Tab and enter your data.

Sylmasta make all their own composite pipe repair and protection bandages at their world-leading production facility in the United Kingdom.

This guarantees fresh product, a reliable supply chain and reduced lead times. It also means Sylmasta can produce customised wraps based on client needs.

Sylmasta have previously manufactured different coloured bandages to better disguise repairs, slower-setting resin for use in hot climates and SylWrap HD with fire retardant inhibitors to meet safety regulations for repair materials used on the UK rail network.

If you require specialist bandages for a specific application, please contact Sylmasta.

SylWrap HD Pipe Repair Bandage Applications

Steel pipe repair, copper pipe repair, PVC plastic pipe repair, steel pipe repair, iron pipe repair, GRP pipe repair, ceramic pipe repair, concrete pipe repair, lead pipe repair, rubber pipe repair
Underwater pipeline strengthening and refurbishment
Increasing pressure resistance, chemical resistance and hoop strength
Protection of structures other than pipes, such as machinery and piles

Benefits of SylWrap HD Pipe Repair Bandage

Easy to use – simply activate the bandage using water and wrap
Begins to cure within minutes for rapid repairs
Refurbishing pipes offers a cost-effective alternative to system replacement
WRAS approved so safe to use with drinking water
Passed ASME PCC-2 Appendix 401-III – Short Term Spool Survival standard when used alongside Industrial Metal to strenghten a pipe weakened by 86 percent to withstand over 309.6 bar pressure
Sylmasta can custom-make SylWrap HD based on client needs for specific repairs

Technical Data

Working Time:
2-5 minutes, dependent upon size of SylWrap, temperature of water and pipework.

Functional Cure:
30-45 minutes.

Full Cure:
24 hours (maximum properties).

Cured Material Life:
10-20 years, dependent upon repair quality, repair thickness, condition of pipe, environmental conditions, pipe temperature, etc.

Shore D Hardness:
70.

Tensile Strength:
250MPa.

Coefficient of Thermal Expansion:
7.1 x 10/ °C (SylWrap composite wrap)

Max Service Temperature:
250°C / 480°F.

Max Pressure Resistance:
30 bar (430 psi), depending on size of pipe and leak (hole requires epoxy filler first).

Chemical resistance:
Acetone, ammonia, sulphuric acid (30%), ethyl alcohol, mineral spirits, gasoline, MEK, toluene, diesel, hydrochloric acid, Varsol, ethylene glycol, crude oil, hydraulic oil (test period of 40 days).

Full TDS Downloads

Download SylWrap HD TDS

Case Studies

SylWrap HD Pipe Repair Bandage Case Studies

Plastic Pipe Joint Leaking in Confined Loft Space Solvent Cement Failure Repair

A plastic pipe leaking through weakened solvent cement is repaired inside a loft where the confined space made it impossible for the homeowner to cut out and replace the failed joint

Saudi Arabia Chemical Plant Repair 3 Bar 300mm Stainless Steel Methanol Pipe Leak

Hamco Arabia make a 30 minute repair to a leaking 3 bar 300mm stainless steel methanol pipe, significantly cutting system downtime and lost production at a chemical plant

Mexico Wastewater Treatment Plant 300mm Pipeline Repair & Strengthen Programme

A wastewater treatment plant in Mexico launch a major pipe repair programme to seal leaks and strengthen weakened sections of a 300mm steel pipeline running through the site

Hospital Repair 80mm Corrosion Hole in Cast Iron Wastewater Drain Pipe in 15 minutes

A hospital seal a 80mm diameter corrosion hole in a cast iron drain pipe through which bathroom wastewater was pouring into a roof space in a repair taking just 15 minutes

Scotia Gas Networks Protection Programme for Underwater Pipe System Exposed by Scour

Scotia Gas Networks and Sylmasta devise a repair and protection programme for underwater gas pipes buried in riverbeds which become exposed by scour and erosion

UK Domestic Property 25mm Lead Water Pipe Leaking Inside House Wall Repair

A vertical 25mm lead water pipe leaking inside the wall of a house undergoes DIY repair by the homeowner to prevent water damage until the pipe could be replaced with a safer material

Hospital Maintenance Worker Makes Cast Iron Waste Pipe U-Bend Repair from Top of Ladder

From the top of a ladder, a hospital maintenance worker seals a hairline crack across a cast iron waste pipe U-bend located in a confined roof space above a corridor

UAE Luxury Complex Chilled Water Cooling System ABS Leaking Pipe Repair Approval

Superfast Aqua PW and SylWrap HD receive approval after testing for repairing leaking ABS joints in a chilled water district cooling system at a luxury complex in the UAE

Underground 100mm Clay Drainage Pipe Repair After Building Work Caused Cracks

An underground 100mm clay drainage pipe is repaired by a homeowner after being left with multiple cracks during building work, one of which almost split the pipe in two

Superfast Aqua PW & SylWrap Leak Repair Passes ASME PCC-2 402-III Qualification Testing

Superfast Aqua PW Epoxy Putty and SylWrap HD make a leak repair qualified to ASME PCC-2 402-III by withstanding pressure increases to 30 bar in multiple tests after sealing a 25mm hole

Industrial Metal & SylWrap Pipe Repair Passes ASME PCC-2 401-III Qualification Testing

Industrial Metal and SylWrap HD are independently tested to pass ASME PCC-2 401-III qualification by rebuilding a pipe weakened by 86% to withstand over 309.6 bar pressure

Cast Iron Soil Pipe Leaking Wastewater in Roof Space Above Hospital Ward Repair

A hospital repair a two-metre long horizontal crack in a 150mm cast iron soil pipe leaking wastewater in a roof space above a ward within 30 minutes of the problem being identified

Railway Operator Repair Damaged Conduit Pipe Carrying Cables Attached Underneath Train

Aluminium conduit housing electrical cables attached underneath a train is repaired after the pipe was torn open by loose ballast flying up from the railway track bed

Stone Damaged Corroded Water Main Supply Pipe Repair at UK Domestic Property

Stone damage and corrosion left a 2-metre long water supply pipe leaking from multiple places underneath a driveway until the homeowner excavated and repaired the line

Golf Club Leaking Dishwasher Drain Pipe Repair in 30 Minutes Before Sunday Lunchtime Rush

An emergency repair made in under 30 minutes to a leaking 50mm plastic dishwasher drain pipe ensures no disruption to the busy Sunday lunchtime service at a golf club

Super Yacht Leaking Bilge Pump Pipe Repair After Corrosion Breached Welded Joint

Corrosion attacked a welded joint in a steel pipe onboard a super yacht, leaving a hole which required emergency repair to keep the boat’s bilge pump system operational

Hawaii Sewer Force Main 30-Metre Section Corroded 450mm Ductile Iron Pipe Repair

A corroded 30-metre section of 450mm ductile iron sewer pipe in an underground vault is refurbished after a previous repair attempt left a 75mm round hole in the line

Nursing Home 150mm Metal Heating Pipe Emergency Live Leak Repair

An emergency live leak repair to a 150mm metal pipe keeps the heating system on and residents warm at a UK nursing home when temperatures were under 10°C.

Oil Refinery Repair Leaking Water Cooling System Attacked by Microbially Induced Corrosion

Sylmasta devise a major pipe repair programme for an oil refinery after microbially induced corrosion left welded joints leaking throughout the water cooling system

Malaysia Water Company 6 Bar Live Leak Repair 300mm Steel Pipe at Treatment Plant

One week after Sylmasta presented to water industry stakeholders in Malaysia, one supplier use their new SylWrap Contractor Case to seal a 6 bar live leak at a treatment plant

City Authority in Canada Repair Underground 600mm Concrete Water Main Pipe Break

A city authority in Canada repair an underground 600mm concrete water main pipe leaking at 2 bar pressure from a break at the exact point the line passed into a wall

Hospital Seal 1.05-Metre Long Crack in Cast Iron Downpipe Leaking Rainwater into Ward

A 1.05-metre long crack in an internal cast iron downpipe leaking rainwater into a hospital ward is sealed within 30 minutes of being discovered with no disruption to patients or staff

Water Company Ductile Pipe System in Underground Pumping Station Corrosion Protection

A water company take corrosion protection measures for a complex 600mm ductile pipe system showing signs of surface damage in an underground pumping station

Costa Rica Sugar Mill Live Leak Pipe Repair of 70mm Alcohol Line Operating at 2 Bar

Having a SylWrap Pipe Repair Contractor Case on site enables a sugar mill to make an instant live leak repair to an alcohol line, avoiding downtime during the short sugar milling season

London Cottages Corroded 48 Metre Long Shared Water Supply Pipe Leak Repair

Four cottages in a terrace of eight repair their respective sections of a 48 metre shared water supply pipe breached by corrosion after low-quality lagging trapped moisture against the line

Industrial Plant Refurbish 3 Metre Section of Corroded Steel Gas Pipe in CHP System

An industrial plant refurbish a 3 metre section of steel pipe carrying natural gas as part of the site’s CHP system which had been weakened by heavy corrosion

Water Network Underground 150mm Cement Coated Steel Pipe Live Leak Repair

A cement coated steel pipe on a water network in Mexico undergoes a live leak repair after removal of the outer coating revealed a 80mm long split in the line

Portable Horse Shower Unit Repair of Copper Pipes Burst in Freezing Weather

When UK temperatures dropped to -15°C, owners of horse showers supplied by Showerking were directed to repair burst pipes within their units using SylWrap

Pig Farm Biodigester Tank Leaking Stainless Steel Heating Pipe Repair

A pig farm seals a leaking heating pipe inside a biodigester tank damaged by a metal pillar connected to a mixer blade after an initial patch welding repair attempt failed

Argentina Chroming Factory Reinforce Welded Corners in Chromic Acid Tank

New corners welded in place during the repair of a corroded chromic acid tank are reinforced using patches of SylWrap HD Pipe Repair Bandage for additional sealing security

Boat Engine Pipe Repair Pinhole Leak in Bend of Rubber Cooling Hose

A rubber hose operating as part of a boat engine cooling system is repaired after developing a pinhole leak in a below deck area of the vessel which was difficult to access

Wastewater Treatment Plant Seal Pipe Flange Against Tree Root Ingress

A 18000mm underground pipe at a wastewater treatment plant is sealed and protected against tree root ingress after the line was penetrated between flange plates

Landfill Site Encapsulate Decommissioned Drainage System Capped Pipe Stub

The decommissioning of an underground drainage system at a landfill site required a capped pipe stub to be encapsulated for protection against corrosion

Chemical Plant Repair 350mm Steel Effluent Pipe Running Under Salt Marshes

A chemical plant accesses, excavates and repairs a leaking effluent pipe running under salt marshes and out to sea in an eight hour window whilst the tide was out

Libya Water Supply Network Above & Below Ground Live Leak Pipe Repair

Above and underground water supply pipes servicing a town in Libya required live leak repair to seal cracks with minimal disruption to homes and businesses

Puerto Rico Power Station Cooling System Leaking Hydrogen Line Pipe Repair

A hydrogen line newly installed in a power station cooling system undergoes repair and reinforcement after it was found to be leaking from two joints 600mm apart

Fire Station Water Pumping House Corroded Steel Pipe Reinforcement

A 6 metre section of 150mm steel pipe containing two elbow bends at a fire station in Saudi Arabia is reinforced before heavy corrosion could breach the line

Quarry Wash Plant 150mm Steel Pipe 90 Degree Elbow Bend Leak Repair

A quarry who previously repaired all leaks on site using clamps required a more versatile method when a pinhole leak developed close to a 90 degree elbow bend

District Heating System Suspended in Ceiling Cavity Live Leak Pipe Repair

An energy company reap the benefits of carrying SylWrap Contractor Cases on their vans by making a rapid live leak repair to a steel district heating pipe in a ceiling cavity

90-year-old Cracked Malleable Iron Private Water Supply Pipe Repair

The repair of a 90-year-old malleable iron pipe for which replacement fittings were no longer made avoided digging out and replacing an entire water supply line

An emergency pipe repair carried out on a leaking 450mm wastewater pipe at a Water Treatment Works in the United Kingdom

Wastewater Treatment Works Contaminated Water Pipe Live Leak Repair

A live leak repair to a wastewater pipe breached during construction work at a treatment plant prevents a potentially damaging environmental incident occurring

Seawater Cooling System 1500mm Pipe Supply Line Leak Repair & Reinforcement

A seawater cooling line in Saudi Arabia undergoes repair and reinforcement after a snapped nozzle created a 50mm hole and a 5 metre vertical discharge of water

Malaysia Pumping House 150mm Steel Elbow Live Pinhole Leak Repair

A water company in Malaysia repair a 150mm steel elbow at a pumping station after corrosion caused a pinhole, through which water was jetting at 6 bar pressure

Libya Leaking Underground 200mm Fuel Oil Line 44 Bar Pressure Pipe Repair

An underground 200mm fuel line in Libya undergoes a leak repair pressure resistant to 44 bar after corrosion caused a crack to appear through which oil was escaping

Bahrain International Airport 100mm UPVC Pipe Step Joint Live Leak Repair

Bahrain Airport avoid having to shut down an important system to fit replacement parts by making a live repair to a 100mm UPVC pipe leaking from a step joint

Camper Van Boiler System Cracked Leaking Copper Heating Pipe Repair

A cracked copper pipe in a camper van boiler system spraying a pressurised jet of water whenever the boiler was turned on is sealed in a DIY pipe repair by the van owner

Petrochemical Refinery 100mm Sulphuric Acid Line Pipe Elbow Reinforcement

A petrochemical refinery in Saudi Arabia reinforces an elbow on a 22 bar sulphuric acid line after it was discovered to have degraded to just 1mm thickness

Leaking coupling joints on a 650mm ductile iron pipe located in an inspection pit are sealed using SylWrap Pipe Repair products

Inspection Pit 650mm Ductile Iron Pipe Leaking Coupling Joints Repair

A water company repair two faulty couplings connecting a section of 650mm pipe to a mains water line discovered to be leaking within a disused inspection pit

1 2 Next »

Repair Calculator

SylWrap HD Pipe Repair Bandage Repair Calculator

The below Wrapping Calculator (SylWrap / SylShield coverage) can help determine the optimum SylWrap HD repair when reinforcing or strengthening a pipeline.

Enter the diameter of the pipe in millimetres, the length of the area requiring wrapping and the operating pressure of the pipeline. The safety factor is a multiple to include a margin of safety. For example, if pipe pressure is 5 bar and you want a safety factor of two, the calculator will formulate a repair capable of withstanding 10 bar.

Once data is entered, the calculator will show the number of layers recommended for the application, how many SylWrap HD Pipe Repair Bandages are required and the estimated repair thickness in millimetres.

To see the repair requirements for a specific SylWrap HD Bandage size, select Change SylWrap Size. This will display a dropdown list of all bandages. The calculator can then determine the number of that specific SylWrap HD Bandage needed based on the repair data entered.

It is also possible to calculate the number of SylWrap HD based on how many layers are desired. The Change Layers option enables the user to input the number of layers they wish to wrap. One SylWrap HD Bandage is approximately 0.45mm thick.

Calculations serve only as an initial guide and judgement should be made on the exact repair based upon all conditions.

Videos

SylWrap HD Pipe Repair Bandage Videos

SylWrap HD reinforces steel pipe pinhole leak already sealed with Wrap & Seal

This demonstration video shows how quick and easy SylWrap HD is to apply when strengthening a pipeline.

Wrap & Seal Pipe Burst Tape had already sealed a pinhole leak in a steel test pipe.

SylWrap HD was activated with water before being wrapped and smoothed over the tape. It set rock-hard within minutes to provide an impact resistant protective sleeve around the pipe.

Permanent pipe repair demonstration to UK water company using Wrap & Seal and SylWrap HD

Sylmasta visit a UK water company to demonstrate the ease and speed of a permanent live leak repair using the products in a SylWrap Universal Pipe Repair Kit.

Wrap & Seal contained a 6 bar leak in a steel test pipe before overwrapping with SylWrap HD.

Completing the permanent repair took under 30 minutes. The water company approved SylWrap Kits for use on their network shortly after.

Pinhole leak in elbow bend repair at Malaysia Water Pumping Station

A water pumping station in Malaysia use a Universal Pipe Repair Kit to seal a live leak on a 150mm steel pipe elbow bend.

Corrosion had caused a pinhole to appear on a section of pipe where it was impossible to fit a clamp. Shutting off the pipe was not possible because it would cause disruption to local water supplies.

Wrap & Seal sealed the leak whilst the pipe continued to operate at 6 bar pressure, followed by overwrapping with SylWrap HD.

CrackSeal Sealant and SylWrap HD seal 450mm split in cast iron pipe

SylWrap HD and CrackSeal Pipe Sealant seal a 450mm split in a cast iron pipe in a demonstration filmed at Sylmasta HQ.

CrackSeal Sealant was extruded directly into the crack and smoothed off using a spatula before it fully hardened. SylWrap HD was then wrapped down the length of the pipe to reinforce the repair.

When a bucket of water was poured into the pipe after the application, nothing leaked through – showcasing the strength of the repair.

Leaking step joint repair at Bahrain International Airport

The maintenance team at Bahrain International Airport make a live leak repair to a 100mm UPVC pipe leaking through a step joint.

Wrap & Seal built a repair up and over the step, preventing water seeping out. SylWrap HD then reinforced the repair.

The application took under 30 minutes whilst the critical system connected to the pipe remained operational, meaning there was no disruption to the airport.

Size Guide

SylWrap HD Pipe Repair Bandage Size Guide

SylWrap HD is currently available in the following sizes recommended for use on the specified pipe diameters.

Single SylWrap HD are also available as part of the Universal Pipe Repair Kit. The Universal Kit also includes Superfast Steel Epoxy Putty and Wrap & Seal Pipe Burst Tape for fixing live leaks.


Product Code	SylWrap Size	Pipe Diameter
SYL106HD	25mm x 1.8m	Up to 15mm Pipes
SYL206HD	50mm x 1.8m	15 – 25mm Pipes
SYL212HD	50mm x 3.6m	25 – 50mm Pipes
SYL309HD	75mm x 2.7m	25 – 50mm
SYL312HD	75mm x 3.6m	50 – 75mm
SYL412HD	100mm x 3.6m	50 – 100mm
SYL416HD	100mm x 5.0m	75 – 125mm
SYL616HD	150mm x 5.0m	100 – 150mm
SYL633HD	150mm x10.0m	150 – 300mm
SYL866HD	200mm x 20m	300 – 600mm
SYL1266HD	300mm x 20m	Larger Pipes

Please use the form to enquire about the price and availability of SylWrap HD Pipe Repair Bandage

Other Water Activated Composite Repair Wraps

SylWrap SC Pipe Repair Bandage

SylWrap SC is a super conformable pipe repair bandage made with a special knitted open weave fabric for ultimate flexibility. It encapsulates difficult joints and contours more easily when reinforcing pipelines featuring complex geometries and angles.

Number of Repairs: One Per Bandage
Work Time: 2–5 minutes
Temperature Resistance: Up to 250°C

SylWrap CR is a pipe repair wrap infused with special corrosion inhibitors to protect pipework and structures from corrosion

SylWrap CR Corrosion Protection Wrap

SylWrap CR is a pipe repair bandage infused with highly effective corrosion inhibitors. It offers enhanced protection against substrate corrosion for pipes in harsh, aggressive environments, including marine and underwater

Number of Repairs: One Per Bandage
Work Time: 2–5 minutes
Temperature Resistance: Up to 250°C

SylShield is an extra thick composite repair wrap used for the protection of pipe weld and pipelines undergoing trenchless installation

SylShield Abrasion Resistant Overwrap

SylShield is three times the thickness of SylWrap HD. It protects welds and pipelines which are subjected to intense processes, such as trenchless pipe installation. It is also used to reinforce pipework in highly abrasive environments like mines, quarries and offshore.

Number of Repairs: One Per Bandage
Work Time: 2–5 minutes
Temperature Resistance: Up to 250°C
