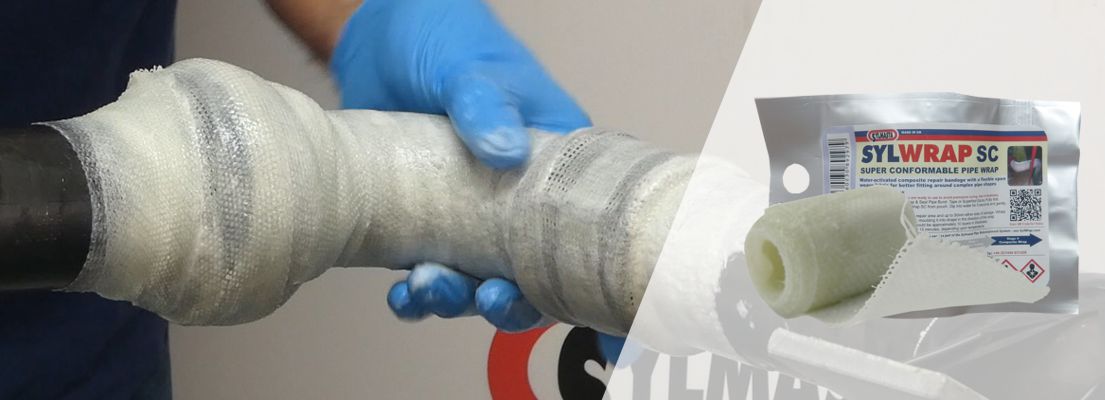

SylWrap SC Pipe Repair Bandage

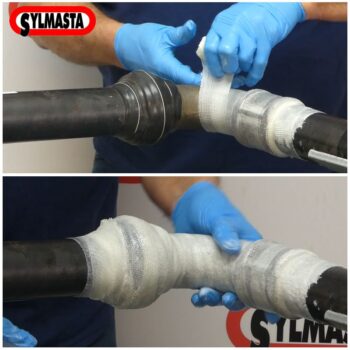

How to make a flexible repair to a complex pipe shape with SylWrap SC

SylWrap SC is easy to use. Dipping the flexible pipe repair bandage into water activates the resin. It is then wrapped tightly around the pipework which requires strengthening or protection.

Further water is used to smooth SylWrap SC down as the application continues, ensuring the bandage fully conforms to the pipe. Once the resin has cured, the finished repair will offer fantastic uniformity.

SylWrap SC has a work time of 2-5 minutes. A functional cure is achieved in 30 minutes and a full cure with maximum properties in 24 hours.

To determine the quantity of SylWrap SC and the bandage sizes for a specific reinforcement or strengthening application, please go to the Repair Calculator Tab and enter your data.

Sylmasta make all their own composite pipe repair and protection bandages at their world-leading production facility in the United Kingdom.

This guarantees fresh product, a reliable supply chain and reduced lead times. It also means Sylmasta can produce customised wraps based on client needs.

Sylmasta have previously manufactured different coloured bandages to better disguise repairs, slower-setting resin for use in hot climates and wraps with fire retardant inhibitors to meet safety regulations for repair materials used on the UK rail network.

If you require a specialist flexible pipe repair bandage for a specific application, please contact Sylmasta.

SylWrap SC Pipe Repair Bandage Applications

• Wrapping around complex pipe shapes including elbows, tees, steps, flanges and reducing spools
• Steel pipe repair, copper pipe repair, PVC plastic pipe repair, steel pipe repair, iron pipe repair, GRP pipe repair, ceramic pipe repair, concrete pipe repair, lead pipe repair, rubber pipe repair
• Increasing pressure resistance, chemical resistance and hoop strength
• Protection of structures other than pipes, such as machinery and piles

Benefits of SylWrap SC Pipe Repair Bandage

• Knitted open weave makes SylWrap SC a more flexible pipe repair bandage with high conformability
• Easy to use – simply activate the bandage using water and wrap
• Begins to cure within minutes for rapid repairs
• Refurbishing pipes offers a cost-effective alternative to system replacement
• Sylmasta can custom-make SylWrap SC based on client needs for specific repairs

Technical Data

• Working Time:
  2-5 minutes, dependent upon size of SylWrap, temperature of water and pipework.

• Functional Cure:
  30-45 minutes.

• Full Cure:
  24 hours (maximum properties).

• Cured Material Life:
  10-20 years, dependent upon repair quality, repair thickness, condition of pipe, environmental conditions, pipe temperature, etc.

• Shore D Hardness:
  70.

• Tensile Strength:
  150MPa.

• Coefficient of Thermal Expansion:
  7.1 x 10/ °C (SylWrap composite wrap).

• Max Service Temperature:
  250°C / 480°F.

• Max Pressure Resistance:
  30 bar (430 psi), depending on size of pipe and leak (hole requires epoxy filler first).

• Chemical resistance: Acetone, ammonia, sulphuric acid (30%), ethyl alcohol, mineral spirits, gasoline, MEK, toluene, diesel, hydrochloric acid, Varsol, ethylene glycol, crude oil, hydraulic oil (test period of 40 days).
