SylWrap Contractor Case - Emergency Live Leak Pipe Repair

The SylWrap Pipe Repair Contractor Case contains enough products for water companies and facilities managers to carry out up to six emergency live leak pipe repairs

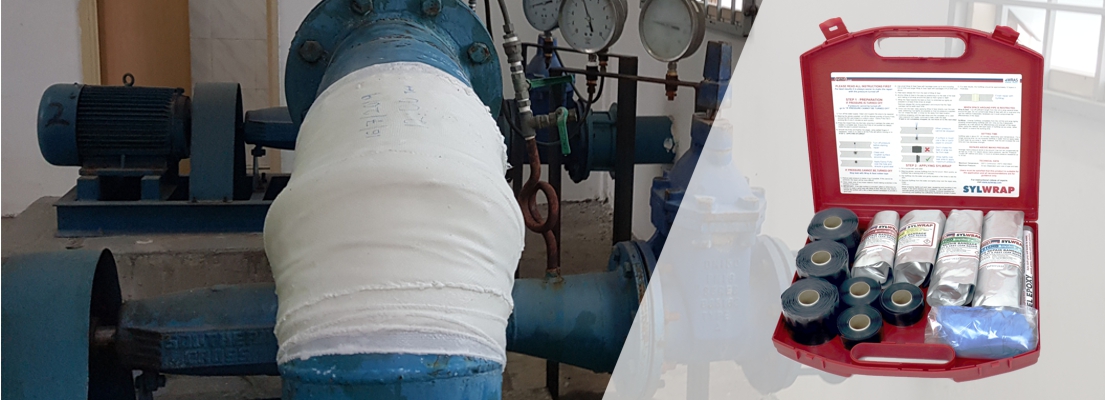

SylWrap Pipe Repair Contractor Case-
Make Multiple Emergency Repairs

Designed for regular pipe repair users, the SylWrap Contractor Case stores enough products to make up to six emergency live leak repairs in a robust, easy-to-carry red case which can be conveniently kept on-site or on the van.

Whenever an emergency repair is required, the user simply has to reach for their Contractor Case where they will find everything they need to perform a permanent leak repair in under 30 minutes. No training is required, just follow the instructions provided.

Several of the United Kingdom’s water companies equip their engineers with Contractor Cases for the speed and ease with which they repair leaks once detected. They also are approved for use on public water networks in Mexico, Canada and Malaysia.

The Contractor Case is effective on pipes made of steel, stainless steel, copper, malleable iron, GRP, ceramic, most plastics, clay, concrete, rubber, and lead. It makes repairs pressure resistant up to 30 bar, temperature resistant to 200ºC, and is used on pipes carrying hot water and chemicals.

Effective repairs can be made around difficult elbow, tee and welded joints, offering a flexible alternative to heavy, bulky pipe repair clamps. All the products in the Case have WRAS Approval, meaning they are certified to British standards as safe to use on pipes carrying drinking water.

Aside from the water industry, the Case is used by sectors where significant pipework systems are present, such as wastewater treatment works, petrochemical plants and marine.

About

Case Studies

Repair Calculator

Videos

Size Guide

About

How to make an emergency pipe repair with a SylWrap Contractor Case

Each SylWrap Pipe Repair Contractor Case contains two sealing materials – Superfast Steel Epoxy Putty and Wrap & Seal Pipe Burst Tape – and multiple SylWrap HD Pipe Repair Bandages.

Superfast Steel is an epoxy putty in a pre-formatted stick. It seals holes and cracks in pipes where water pressure can be turned off, restores surface profile on pipework badly damaged by corrosion or pitting, and removes step from joints prior to the application of Wrap & Seal.

To use, Superfast Steel is kneaded by hand until it turns a uniform colour. It is applied whilst soft, smoothed over pipework for surface restoration or pushed into cracks for leak sealing. Within 5-10 minutes, it will harden.

Wrap & Seal Pipe Burst Tape is a waterproof pipe repair tape used when pressure cannot be turned off. It stretches by 300 percent and fuses into a solid rubber band as it wrapped to provide a high pressure seal over the leak.

Multiple tapes applied on top of each other will bond together in the same way, capable of building a live leak repair with pressure resistance up to 30 bar.

If undertaking a high-pressure repair, please use the Repair Calculator to input your data. The Calculator can then determine the quantity of Wrap & Seal needed for your specific application.

Contractor Cases covering pipework in excess of 150mm include additional SylPad Pressure Resistance Multiplier.

SylPad is used in conjunction with Wrap & Seal to better concentrate the elastic force of the tape directly over holes up to 20mm on larger diameter pipes, multiplying pressure resistance by up to three times.

After application of the sealing material, the repair is reinforced with a SylWrap HD Pipe Repair Bandage. Wetting the Bandage activates the resin within the composite repair wrap.

The bandage is then wrapped around and smoothed over the pipe. It will set to provide a rock-hard, impact-resistant final layer of protection.

There are 12 different configurations of Contractor Case available designed for use with different pipe diameters. For a breakdown of what each Case contains and the pipe size Sylmasta recommend its use with, please see the Size Guide.

Should you require further information about the most suitable Contractor Case for your type of application, please fill out the enquiry form below and a technician will be happy to advise.

If you do not see a Contractor Case listed which meets your requirements, Sylmasta can also offer customised Cases tailor-made to your specific needs.

Applications

Making multiple emergency live leak pipe repair in sectors with significant pipework networks to manage
Industrial repairs, including in wastewater treatment works, quarry wash plants, dry risers, petrochemical plants, nuclear power plants, oil rigs, farms, hotels, and breweries
Increasing the pressure resistance, chemical resistance, and longevity of pipes

Benefits

Case contains enough products for up to six different repairs at a cheaper cost compared to buying individual SylWrap Kits
Easy-to-store on-site or on the van for rapid response emergency pipe repair
Repairs can be made inside 30 minutes by following the instructions provided
WRAS approved so safe to use with drinking water
Permanent repairs offers a cost-effective alternative to replacing systems

Technical Data

SylWrap Working Time:
2-5 minutes, dependent upon size of SylWrap, temperature of water and pipework.

Functional Cure:
30-45 minutes.

Full Cure:
24 hours (maximum properties).

Cured Material Life:
10-20 years, dependent upon repair quality, repair thickness, condition of pipe, environmental conditions, pipe temperature, etc.

Max Service Temperature:
200°C / 390°F.

Max Pressure Resistance:
30 bar (435 psi) using Superfast Steel depending upon nature of leak. For live leaks using Wrap & Seal, please use the Repair Calculator to enter your repair data.

Chemical resistance: Acetone, ammonia, sulphuric acid (30%), ethyl alcohol, mineral spirits, gasoline, MEK, toluene, diesel, hydrochloric acid, Varsol, ethylene glycol, crude oil, hydraulic oil (test period of 40 days).

Full TDS Downloads

Download Contractor Case TDS

Case Studies

SylWrap Pipe Repair Contractor Kit Case Studies

Suspension Bridge Steel Water Main Pipe Leaking Expansion Joint Repair

A water company in the UK repair a leaking aluminium expansion joint fitted to a 225mm steel water main pipe carried over a river by a major road suspension bridge

Super Yacht Leaking Bilge Pump Pipe Repair After Corrosion Breached Welded Joint

Corrosion attacked a welded joint in a steel pipe onboard a super yacht, leaving a hole which required emergency repair to keep the boat’s bilge pump system operational

Oil Refinery Repair Leaking Water Cooling System Attacked by Microbially Induced Corrosion

Sylmasta devise a major pipe repair programme for an oil refinery after microbially induced corrosion left welded joints leaking throughout the water cooling system

Malaysia Water Company 6 Bar Live Leak Repair 300mm Steel Pipe at Treatment Plant

One week after Sylmasta presented to water industry stakeholders in Malaysia, one supplier use their new SylWrap Contractor Case to seal a 6 bar live leak at a treatment plant

Costa Rica Sugar Mill Live Leak Pipe Repair of 70mm Alcohol Line Operating at 2 Bar

Having a SylWrap Pipe Repair Contractor Case on site enables a sugar mill to make an instant live leak repair to an alcohol line, avoiding downtime during the short sugar milling season

Water Network Underground 150mm Cement Coated Steel Pipe Live Leak Repair

A cement coated steel pipe on a water network in Mexico undergoes a live leak repair after removal of the outer coating revealed a 80mm long split in the line

Pig Farm Biodigester Tank Leaking Stainless Steel Heating Pipe Repair

A pig farm seals a leaking heating pipe inside a biodigester tank damaged by a metal pillar connected to a mixer blade after an initial patch welding repair attempt failed

Boat Engine Pipe Repair Pinhole Leak in Bend of Rubber Cooling Hose

A rubber hose operating as part of a boat engine cooling system is repaired after developing a pinhole leak in a below deck area of the vessel which was difficult to access

Wastewater Treatment Plant Seal Pipe Flange Against Tree Root Ingress

A 18000mm underground pipe at a wastewater treatment plant is sealed and protected against tree root ingress after the line was penetrated between flange plates

Libya Water Supply Network Above & Below Ground Live Leak Pipe Repair

Above and underground water supply pipes servicing a town in Libya required live leak repair to seal cracks with minimal disruption to homes and businesses

Puerto Rico Power Station Cooling System Leaking Hydrogen Line Pipe Repair

A hydrogen line newly installed in a power station cooling system undergoes repair and reinforcement after it was found to be leaking from two joints 600mm apart

Quarry Wash Plant 150mm Steel Pipe 90 Degree Elbow Bend Leak Repair

A quarry who previously repaired all leaks on site using clamps required a more versatile method when a pinhole leak developed close to a 90 degree elbow bend

District Heating System Suspended in Ceiling Cavity Live Leak Pipe Repair

An energy company reap the benefits of carrying SylWrap Contractor Cases on their vans by making a rapid live leak repair to a steel district heating pipe in a ceiling cavity

90-year-old Cracked Malleable Iron Private Water Supply Pipe Repair

The repair of a 90-year-old malleable iron pipe for which replacement fittings were no longer made avoided digging out and replacing an entire water supply line

An emergency pipe repair carried out on a leaking 450mm wastewater pipe at a Water Treatment Works in the United Kingdom

Wastewater Treatment Works Contaminated Water Pipe Live Leak Repair

A live leak repair to a wastewater pipe breached during construction work at a treatment plant prevents a potentially damaging environmental incident occurring

Malaysia Pumping House 150mm Steel Elbow Live Pinhole Leak Repair

A water company in Malaysia repair a 150mm steel elbow at a pumping station after corrosion caused a pinhole, through which water was jetting at 6 bar pressure

Libya Leaking Underground 200mm Fuel Oil Line 44 Bar Pressure Pipe Repair

An underground 200mm fuel line in Libya undergoes a leak repair pressure resistant to 44 bar after corrosion caused a crack to appear through which oil was escaping

Bahrain International Airport 100mm UPVC Pipe Step Joint Live Leak Repair

Bahrain Airport avoid having to shut down an important system to fit replacement parts by making a live repair to a 100mm UPVC pipe leaking from a step joint

Leaking coupling joints on a 650mm ductile iron pipe located in an inspection pit are sealed using SylWrap Pipe Repair products

Inspection Pit 650mm Ductile Iron Pipe Leaking Coupling Joints Repair

A water company repair two faulty couplings connecting a section of 650mm pipe to a mains water line discovered to be leaking within a disused inspection pit

Saudi Arabia Cracked 250mm PCCP Stub Live Leak Pipe Repair & Reinforcement

An engineering company in Saudi Arabia make a live leak pipe repair to a cracked PCCP stub with no isolation valve operating under 4 bar pressure

A 600mm asbestos cement pipe leaking from both ends of a sleeve undergoes repair using a SylWrap Pipe Repair Kit

Mexico Buried 600mm Asbestos Cement Leaking Pipe Sleeve Repair

A water utility company in Mexico repair a buried 600mm asbestos cement pipe after discovering it was leaking from both ends of a sleeve

A longitudinal split in a plastic pond supply hose suffering from a bad cut undergoes a repair using a SylWrap Universal Pipe Repair Kit

Pond Plastic Supply Hose 80mm Longitudinal Split Leak Repair

A property owner repairs a 300mm area of damage including a 80mm split in a buried plastic hose supplying water to a pond after it was cut into with a pruning saw

Argentina Oil Well 900mm Steel Pipe Repair & Surface Restoration

An oil well in Argentina repair a 900mm steel pipe suffering from heavy surface damage and ruptures caused by corrosion located near a tee and welded joint

District Heating System Corroded Underground Pipe Leak Repair

Two sections of corroded leaking pipe in a district heating system undergo repair to avoid shutting down the system in the depths of winter to fit replacement parts

Essex Flats Ruptured 20 bar Cast Iron Water Supply Pipe Repair & Reconnection

A contractor repairs a ruptured section of 70mm cast iron water supply pipe before reconnecting it to the network, keeping water running for a block of flats in Essex

SylWrap Pipe Repair carried out on a leaking PVC plastic pipe which was part of a swimming pool filtration system at a leisure centre

Leisure Centre Swimming Pool Filtration System PVC Pipe Repair

A Welsh leisure centre make a live leak repair of a pressurised 50mm crack on an inaccessible 200mm PVC plastic pipe in their swimming pool filtration system

The repair of a leaking sprinkler system carried out using a SylWrap Standard Pipe Repair Kit

Furniture Factory Steel Sprinkler System Pipe Pinhole Leak Repair

A furniture business repair a pinhole leak on a steel pipe tee in their workshop sprinkler system after initially being told the only solution was replacing the leaking section

An underground heating pipe on a farm in the United Kingdom repaired using a SylWrap Universal Pipe Repair Kit

Farm Underground Heating Pipe and Insulation Lagging Repair

Contractors working on a farm fix a leaking underground heating pipe with insulation lagging after cutting into it when mistakenly believing it to be a disused drainage pipe

A CHP System in an on-site Power Plant in the United Kingdom is repaied using a SylWrap Pipe Repair Kit

CHP Plant High Temperature Pipe Leaking Elbow Joint Repair

An automotive company make a high temperature live leak repair to a pipe in their on-site CHP Plant, avoiding the need to shut down power to fit a replacement

A contaminated water pipe repair carried out in a Power Plant in Puerto Rico

Puerto Rico Power Plant Cracked Contaminated Water Pipe Live Leak Repair

A live leak repair to a contaminated water pipe ensured a Puerto Rico Power Station was operating at full capacity 18 months later when Hurricane Maria hit the island

The repair of a leaking underground water main which had proven impossible to fix for 15 years before SylWrap came up with a solution

Underground Burst Water Main Repaired After 15 Years of Leaking

A burst underground 400mm carbon steel water main undergoes a live leak repair after being considered unfixable and left to leak for 15 years

Repair Calculator

Wrap & Seal Repair Calculator

The below Wrap & Seal Calculator can be used to determine the recommended number of Wrap & Seal Pipe Burst Tapes required to seal a live leak based on pipe diameter and pressure.

Enter the diameter of the pipe in millimetres, water pressure and the size of the hole requiring sealing in millimetres. The safety factor is a multiple to include a margin of safety. For example, if pipe pressure is 5 bar and you want a safety factor of two, the calculator will formulate a repair capable of withstanding 10 bar.

After entering your data, selecting the size of Wrap & Seal will determine how many of that specific tape are required for your repair. Repairs being made to pipes in excess of 150mm diameter using Wrap & Seal PB-50x4m or PB-50x11m should be made in conjunction with SylPad.

Calculations serve as a guide to potential maximum pressure resistance only. Actual pressure resistance depends upon pipe material, condition, hole size, leak type and tension maintained during wrapping. If you are unsure, more than one Wrap & Seal can be used to stop the leak.

Videos

SylWrap Pipe Repair Contractor Case Videos

Live leak pipe repair using Wrap & Seal and SylWrap HD Bandage

Sylmasta visit a water company in the United Kingdom to demonstrate the ease and speed of a permanent repair using a Contractor Case.

A split was cut into a 150mm steel pipe and pressure set at 6 bar. The leak was contained with Wrap & Seal Pipe Burst Tape.

The tape was then overwrapped with SylWrap HD Pipe Repair Bandage, which set rock hard to provide an impact-resistant layer of protection.

Pinhole leak in elbow bend repair at Malaysia Water Pumping Station

A water pumping station in Malaysia use a Contractor Case to seal a live leak on a 150mm steel pipe elbow bend.

Corrosion had caused a pinhole to appear on a section of pipe where it was impossible to fit a clamp. The pipe could not be shut off because it would cause severe disruption to local water supplies.

Wrap & Seal was used to seal the leak whilst the pipe continued to operate at 6 bar pressure, followed by overwrapping with SylWrap HD to create an impact resistant layer of protection.

Leaking step joint repair at Bahrain International Airport

The maintenance team at Bahrain International Airport make a live leak repair to a 100mm UPVC pipe leaking through a step joint.

Wrap & Seal was used to build a repair up and over the step, preventing water seeping out. SylWrap HD then reinforced the repair.

The application took under 30 minutes whilst the critical system connected to the pipe remained operational, meaning there was no disruption to the airport.

Size Guide

SylWrap Pipe Repair Contractor Case Size Guide

The below size guide lists the size and quantities of Wrap & Seal, SylWrap Bandage and SylPad Pressure Resitance Multipliers each Contractor Case contains.

It also details the maximum number of repairs and pipe diameters each Case can be used for. Every Case contains 1 x 114g Superfast Epoxy Putty Stick.


Product Code	Pipe Diameter Range	No. of Repairs	SylWrap Bandages	Wrap & Seals	No. of SylPads
SYL-PRO-206	15 – 25mm	Up to 6	6 x SYL206HD (50mm x 1.8m)	8 x Small (25mm x 2m)	0
SYL-PRO-15-50	15 – 50mm	Up to 6	3 x SYL206HD (50mm x 1.8m) 3 x SYL309HD (75mm x 2.7m)	8 x Small (25mm x 2m)	0
SYL-PRO-309	25 – 50mm	Up to 6	6 x SYL309HD (75mm x 2.7m)	8 x Small (25mm x 2m)	0
SYL-PRO-25-100	25 - 100mm	Up to 4	2 x SYL309HD (75mm x 2.7m) 2 x SYL412HD (100mm x 3.6m)	8 x Small (25mm x 2m)	0
SYL-PRO-412	50 – 100mm	Up to 4	4 x SYL412HD (100mm x 3.6m)	2 x Small (25mm x 2m) 4 x Large (50mm x 4m)	0
SYL-PRO-15-150	15 – 150mm	Up to 4	1 x SYL206HD (50mm x 1.8m) 1 x SYL309HD (75mm x 2.7m) 1 x SYL412HD (100mm x 3.6m) 1 x SYL616HD (150mm x 5.0m)	3 x Small (25mm x 2m) 3 x Large (50mm x 4m)	0
SYL-PRO-50-150	50 – 150mm	Up to 4	2 x SYL412HD (100mm x 3.6m) 2 x SYL616HD (150mm x 5.0m)	2 x Small (25mm x 2m) 4 x Large (50mm x 4m)	0
SYL-PRO-616	100 – 150mm	Up to 4	4 x SYL616HD (150mm x 5.0m)	2 x Small (25mm x 2m) 4 x Large (50mm x 4m)	0
SYL-PRO-15-300	15 - 300mm	Up to 5	1 x SYL206HD (50mm x 1.8m) 1 x SYL309HD (75mm x 2.7m) 1 x SYL412HD (100mm x 3.6m) 1 x SYL616HD (150mm x 5.0m) 1 x SYL633HD (150mm x 10.0m)	2 x Small (25mm x 2m) 4 x Large (50mm x 4m)	4
SYL-PRO-100-300	100 – 300mm	Up to 4	2 x SYL616HD (150mm x 5.0m) 2 x SYL633HD (150mm x 10.0m)	4 x Large (50mm x 4m)	4
SYL-PRO-633	150 – 300mm	Up to 4	4 x SYL633HD (150mm x 10.0m)	4 x Large (50mm x 4m)	4
SYL-PRO-866	300-600mm	Up to 2	2 x SYL866HD (150mm x 10.0m)	2 x X-Large (50mm x 11m)	2

Please use the form to enquire about the price and availability of the SylWrap Pipe Repair Contractor Case
